540 Watt Solar Panel Price in Pakistan Today (9 Oct 2026)

The 540 watt solar panel price in Pakistan matters to two kinds of buyers: people on a tight budget who want an A-grade plate at the lowest rate per watt, and people who already have 540 W panels on the roof and need more of the same. The dated rate table above covers today’s numbers. This page covers everything else: specs, how a 540 W Mono PERC plate compares with newer N-type panels, how many you need and what they really produce.

On our sheet the solar panel 540 watt price in Pakistan currently starts at Rs 20,520, which is Rs 38 per watt. Compare that with the market average of Rs 41.3 per watt for large panels.

540 watt solar panel specifications

Almost every 540 W panel in the market is Mono PERC: P-type cells, 144 half-cut, in a frame about 7.5 feet long. A couple of years ago this was the standard rooftop plate, and many buyers still search for the 540 watt solar panel price in Pakistan 2023 list because that is what their neighbour installed. The design has not changed, only its place in the market.

Here are the datasheet figures for the three 540 W models you are most likely to see.

Spec	Jinko Tiger Pro JKM540M-72HL4	JA Solar JAM72S30-540/MR	Canadian HiKu6 CS6W-540MS
Size (mm)	2274 × 1134 × 35	2278 × 1134 × 35	2261 × 1134 × 35
Size (feet)	7.46 × 3.72	7.47 × 3.72	7.42 × 3.72
Weight	28.9 kg	28.1 kg	27.8 kg
Voc	49.42 V	49.60 V	49.2 V
Isc	13.85 A	13.86 A	13.90 A
Vmp / Imp	40.70 V / 13.27 A	41.64 V / 12.97 A	41.3 V / 13.08 A
Efficiency	20.94%	20.9%	21.1%
Power temp. coefficient	-0.35%/°C	-0.35%/°C	-0.34%/°C

Jinko’s datasheet promises 98% of rated power in year one, then a loss of about 0.55% a year, ending at 84.8% after 25 years with a 12-year product warranty. Inverex also sells a 540 W mono plate under its own name; ask the dealer for its datasheet before you compare it with the brands above.

Spotting a PERC 540 W plate at the shop

Dealers sometimes stack old and new stock together, so it helps to know what you are looking at.

• Model code: Jinko PERC plates end in “M” (JKM540M), N-type ones in “N” (JKM585N). JA’s PERC 540 is a JAM72S30, its N-type range is JAM72D40 or later.
• Datasheet: the power temperature coefficient gives it away. Around -0.34 to -0.35%/°C means PERC; -0.29 to -0.30%/°C means N-type.
• Warranty: PERC plates usually carry a 25-year power warranty, many N-type plates 30 years.

None of this makes a PERC plate bad. It just means you should pay a PERC price for it.

Notice the small length differences: 2261, 2274 and 2278 mm. That is under 2 cm, but it matters if you are fitting new plates into an existing structure with fixed clamp positions. Our solar panel size in feet guide shows how much space to leave between rows.

540 W vs nearby wattages: which should you buy?

The honest comparison for a 540 W panel is cost per unit over its life, not price per plate.

Wattage	Cheapest A-grade	Price per watt	Typical cell	Power left after 25 years
540 W	Rs 20,520	Rs 38	Mono PERC, 144 cells	about 84.8%
545 W	Rs 21,255	Rs 39	Mono PERC, 144 cells	about 84.8%
585 W	Rs 23,400	Rs 40	N-type, 144 cells	about 89%

Degradation: PERC 540 W vs N-type over the years

Year	Mono PERC (Jinko Tiger Pro warranty curve)	N-type (typical LONGi/Jinko warranty curve)
1	98.0%	98.5%
5	95.8%	96.9%
10	93.0%	94.9%
15	90.3%	92.9%
20	87.5%	90.9%
25	84.8%	88.9%

So a 540 W PERC plate is warranted to give about 458 W at year 25, while a 585 W N-type plate is warranted for about 520 W. Add the better heat performance of N-type cells in a Pakistani summer, and the 540 W panel only wins if its price per watt is clearly lower.

When does 540 W still make sense?

• You are extending an existing 540 W string and want matching current.
• The price per watt gap to N-type is wide enough to pay back the lower output.
• Your system is small and the budget is fixed today, not over 20 years.

If you are not tied to 540 W, compare the 545 watt solar panel price too; it is the same family one bin up and often costs nearly the same per watt.

How many 540 W panels for 3, 5 and 10 kW (with price)

Target	Panels	Actual DC	Panel cost (cheapest 540 W)	Extra plates vs 585 W
3 kW	6	3.24 kW	Rs 123,120	none
5 kW	10	5.40 kW	Rs 205,200	1 more
10 kW	19	10.26 kW	Rs 389,880	1 more

The last column is the hidden cost. Each extra plate needs its own structure slot, clamps, a bit more cable and installer time, and takes about 28 sq ft more roof. On a 10 kW job one plate is not much. On a cramped roof it can be the difference between fitting the system or not.

What one extra plate really costs

The panel cost column above shows only the plates. With 540 W you buy more plates for the same kW, and each one brings its own small costs:

• one more pair of rails or a longer structure run
• four more clamps and a set of bolts
• a few more metres of DC cable and one more MC4 pair
• a little more labour to lift, fix and wire it
• about 28 sq ft more roof, plus its share of walkway

Ask your installer for a per-kW price for both the 540 W layout and a 585 W layout. If the totals are close, the bigger N-type plate wins on output.

Example: topping up an old 540 W system

Say a house in Gulberg has six Jinko 540 W plates (3.24 kW), fitted a few years back on a 5 kW hybrid inverter, and the family now wants to reach about 5 kW.

1. Add four more 540 W plates to reach 10 plates, or 5.40 kW.
2. Wire them as a new string on the inverter’s second MPPT if it has one, or as a matched string of 5 + 5.
3. Use the same model if possible. If the Tiger Pro is out of stock, a JA or Canadian 540 W is close enough in current to share an MPPT, but not the same string.
4. Check the structure: new plates must match the old ones’ length for the existing clamps.

How many units does a 540 watt panel produce in Pakistan?

One 540 W panel produces about 800 to 1,050 units a year across Pakistan’s main cities. These yearly figures use long-term solar data for each city at a good tilt, with about 22% off for heat, dust and wiring losses. PERC panels lose a little more in heat than N-type, so treat summer figures as the top of the range.

City	Per day (average)	Per month (average)	Per year	Best season	Worst season
Karachi	about 2.6 units	about 77	about 930	Spring	Winter is still good
Lahore	about 2.2 units	about 67	about 815	Spring	Winter
Faisalabad	about 2.2 units	about 66	about 810	Spring	Winter
Multan	about 2.4 units	about 71	about 860	Spring/Summer	Winter
Islamabad	about 2.3 units	about 69	about 845	Summer	Winter
Peshawar	about 2.5 units	about 75	about 915	Summer	Winter
Quetta	about 2.9 units	about 86	about 1,045	Summer	Winter
Hyderabad	about 2.5 units	about 76	about 930	Spring	Winter is still good

A 10-plate, 5.40 kW system in Lahore therefore gives about 8,150 units a year, or around 680 a month on average, from about 450 in a foggy January month to over 800 in April. In Karachi the same system gives about 9,300 units a year.

Keep a PERC array producing

PERC plates have no special care needs, but the basics matter more because they start with less output per square foot.

1. Wash every one to two weeks in the dusty months (April to June in Punjab), and after every dust storm.
2. Use plain water and a soft brush or mop, early morning or late evening. Cold water on hot glass at noon is a bad idea.
3. Keep the tilt at 15° or more where the structure allows, so rain does some of the cleaning.
4. Trim trees and move water tanks or dish antennas that throw shade after 2 pm.

Since the NEPRA (Prosumer) Regulations 2026 moved new connections to net billing, those units are worth the most when you use them yourself. Exported units earn far less than you pay for grid units.

What can a 540 watt solar panel run?

Here is a load-shedding scenario rather than a full-home one. Four 540 W plates (2.16 kW) on a hybrid inverter with a battery, in Lahore, average about 8.9 units a day.

Appliance	Draw	Hours a day	Units a day
6 DC inverter fans	35 W each	12	about 2.5
15 LED lights	12 W each	6	about 1.1
Inverter fridge	runs on and off	24	about 1.2
LED TV and Wi-Fi router	about 120 W	6	about 0.7
Washing machine	about 500 W	1	0.5
1 HP water motor	about 750 W	0.5	about 0.4
Total			about 6.4 units

That leaves about 2.5 units of headroom on an average day, which disappears in winter. What these four plates cannot do is run a 1.5 ton AC through the afternoon; that alone needs about three more 540 W plates on a hot day.

As a single panel, one 540 W plate at noon gives about 400 to 440 W of usable power: enough for 4 standard ceiling fans, 10 DC fans, or a fridge plus lights.

Best inverter for 540 W panels

A 540 W PERC panel has a lower voltage than a 585 W N-type plate, about 49.4 to 49.6 V open circuit, and roughly 53 V on a freezing winter morning. That lets you put more panels in a string.

Inverter input limit	Max 540 W panels per string (cold Voc ~53 V)	Typical working voltage of that string
450 V (older hybrids)	8	about 330 V
500 V (most 5–6 kW hybrids)	9	about 370 V
550–600 V (single-phase on-grid)	10–11	about 410–450 V
1000 V (three-phase on-grid)	18	about 740 V

Two more things to check:

• Current: 540 W plates are about 13.9 A short-circuit, so almost every inverter sold in the last few years can take them.
• MPPT range: the string’s working voltage must stay above the inverter’s minimum MPPT voltage on a hot day, when it can fall around 10 to 12% below the label.

For a 10-plate system on a 5 kW hybrid with two MPPTs, two strings of five (about 205 V working voltage each) sit comfortably inside most MPPT windows. On a single-MPPT 5 kW hybrid, run all ten as two parallel strings of five only if the inverter’s input current allows about 28 A; otherwise use one string of nine and leave one plate out.

Mixing 540 W with newer panels on one inverter

This is the most common question from people who already own 540 W plates. The rules are simple:

• Never mix 540 W PERC and 585 W N-type plates in the same string. The string runs at the current of the weakest plate.
• Two different strings on two separate MPPTs are fine. Each MPPT tracks its own string.
• Parallel strings on one MPPT must have working voltages within a few percent of each other, and their combined current must stay inside the inverter’s input limit. In practice that means same model, same count.
• Do not exceed the inverter’s total PV limit. Most allow some oversizing, but read the datasheet.

Buying tips before you pay

Because 540 W is an older size, the risks are a little different from buying a brand-new N-type panel.

1. Ask for the manufacturing date. It is printed on the label or coded in the serial. Panels that sat in a warehouse for years are fine if stored well, but check the frame and junction box.
2. Watch for B-grade and returned stock. End-of-line sizes attract them. B-grade plates often have visible cell marks, uneven colour or a different label format.
3. Check for micro-cracks. An EL (electroluminescence) test from a lab or a well-equipped dealer shows cracked cells you cannot see.
4. Get the warranty card from the official distributor; the same brand can reach the market through more than one importer, so ask whose card you are getting.
5. Make sure the bill lists the exact model, wattage, serials and date.
6. Inspect corners and the backsheet. A scratched backsheet lets in moisture over time.

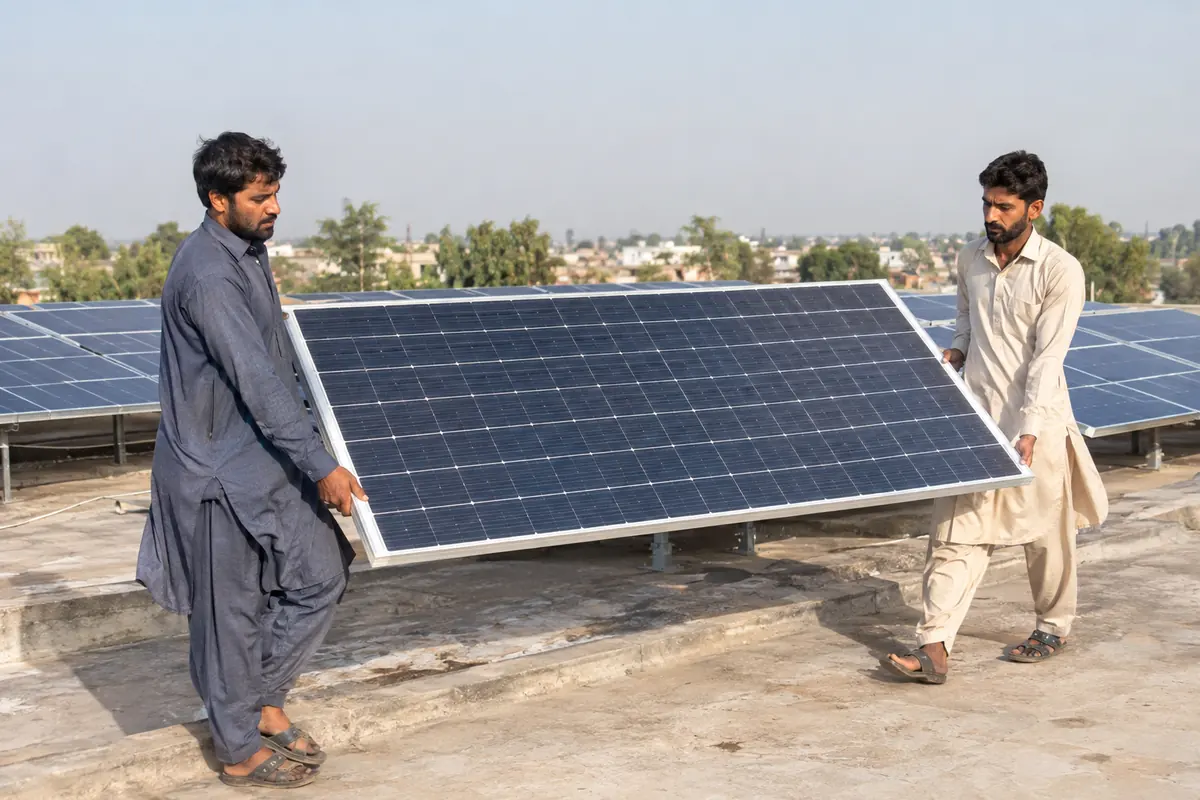

7. Carry them on edge, never flat and stacked loosely on a rickshaw roof.

For current brand rates, see the Jinko solar panel price and LONGi solar panel price pages. If a 540 W plate is too big for your roof, the 500 watt solar panel price page covers the shorter 66-cell plates, and the solar panel price list shows every size side by side.
